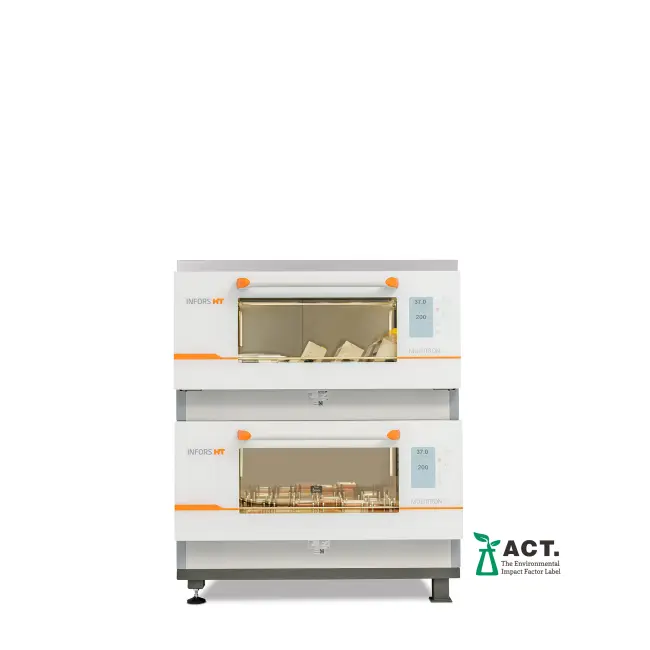

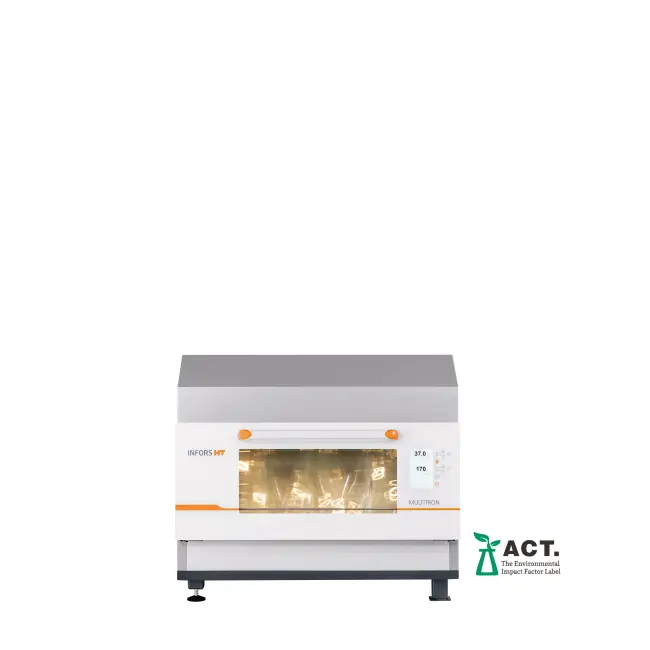

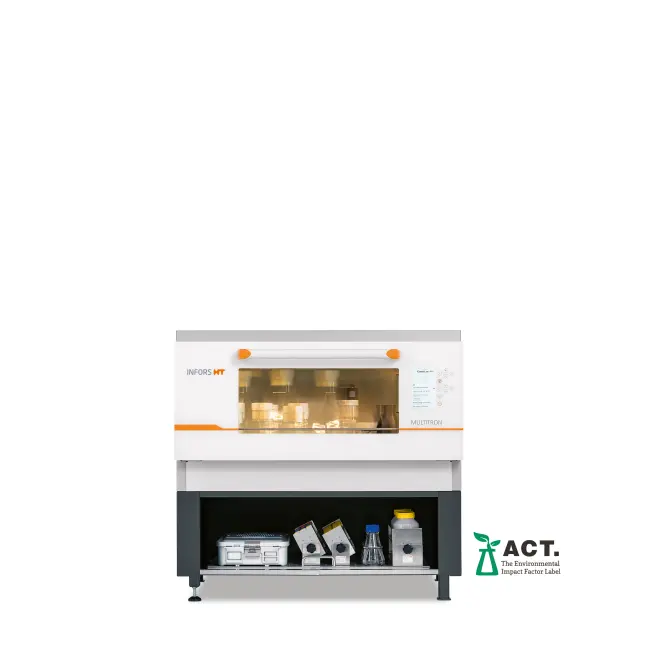

Reliable and versatile incubator shaker from Infors

The Infors Multitron is the first choice for reliable and effortless cultivation of microorganisms and cells. This incubator shaker guarantees homogeneous conditions and delivers reproducible results.

Despite its compact size, a triple-stacked Infors Multitron can be used for over 60 liters of culture, or—with the 3 mm shaking amplitude version—carry out more than 23,000 experiments in parallel.

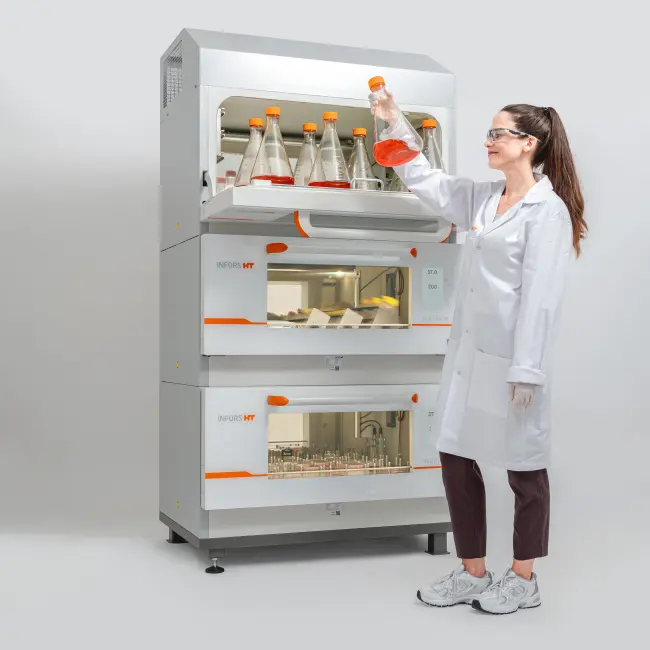

The top Multitron unit provides a comfortable working height of only 1.40 m in a triple-stack configuration. It can also be placed on a bench or workstation if only a single unit is needed.

APPLICATIONS FOR MULTITRON

• Maximum capacity in minimal space
• Handles heavy loads without modifications
• All units easily accessible – even in triple-stack setups
• Optimal conditions for your research
• Minimal disturbance of growth cycles
• Faster and easier door opening and closing
• Quicker start-up and shut-down
• Improved temperature uniformity
• Enhanced insulation reduces condensation risk
• Easier cleaning and sanitization thanks to a hygienic design

The Multitron’s improved temperature control system ensures stable and precise temperature regulation, contributing to high performance and reliable operation.

All components are of the highest quality – for example, the fans have a lifespan of up to 20 years in continuous 24/7 operation, guaranteeing long-term durability and minimal maintenance.

The system is also equipped with CO₂ supplementation, enabling stable pH levels that are ideal for cell cultivation. Its low CO₂ consumption makes the operation both cost-efficient and environmentally friendly.

The chamber functions as a self-contained gas mixing station, automatically creating the correct concentration and eliminating the need for pre-mixed gases. For processes with high oxygen consumption, a ventilation opening ensures optimal gas exchange and stable environmental conditions.

TECHNICAL DATA – INFORS MULTITRON

• Dimensions (WxDxH): 1070×880×695 mm (without cooling system)
• Volume: 21 L
• Maximum load: 55 kg
• Maximum expansion: Stackable up to 3 units
• Shaking speed: 20–400 rpm (3 mm: up to 1,000 min⁻¹), depending on load and number of units in stack
• Shaking motion: Orbital, 3 mm / 25 mm / 50 mm / adjustable
• Temperature range: 6°C above ambient up to 65°C (without cooling) and 22°C below ambient up to 65°C (with side cooling)
• Standard parameters: Temperature, speed, timer
• Options: Cooling, humidity, CO₂ control, light intensity
• Humidity (rH): Up to 85%, non-condensing

Questions? Contact our product managers for more information.

Infors-Multitron-datasheet.pdf
